Tanks and radiators

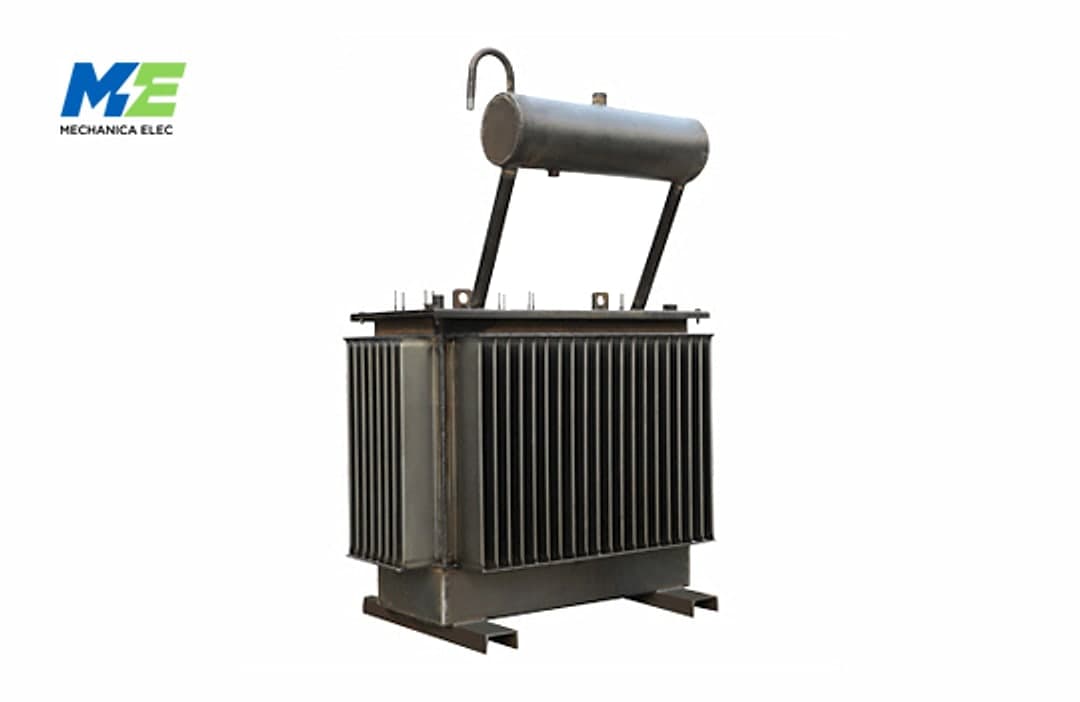

Transformer tanks
CNC-cut, leak-tested tanks, painted to ISO 12944.

Data sheet
Technical data
| Types | |
|---|---|
| Tank types | Corrugated, flat-wall conventional, fully accessorised and special-purpose |
| Process | |
| Surface preparation | Grit blast Sa 2½, 50–70 µm |
| Coating | Two-pack epoxy flow coat, ISO 12944 |
| Quality | |
| Leak testing | 100% pressure and UV test before and after blasting |
| Standards | |
| Designed to | Coating to ISO 12944 |
Final ratings, losses, impedance and dimensions are confirmed in the guaranteed technical particulars (GTP) for each order.
Overview
Under our Mechanica Elec trademark, we fabricate tanks for power and distribution transformers. Plates are cut on CNC plasma machines. Every tank is pressure- and UV-tested before and after blasting, grit-blasted to Sa 2½ (50–70 µm profile), solvent-flushed internally and flow-coated with two-pack epoxy paint to ISO 12944.
Applications
- Power transformer manufacturers
- Distribution transformer manufacturers
Design and engineering features
- Corrugated, flat-wall conventional, fully accessorised and special-purpose tanks
- CNC plasma cutting
- 100% pressure and UV test before and after blasting
- Grit blasting to Sa 2½, 50–70 µm profile
- Two-pack epoxy flow coating to ISO 12944
- Internal solvent flushing before painting
Request a quote for transformer tanks
Share your requirements: rating, voltages, standards, site and timeline. Our engineers will follow up with guaranteed technical particulars (GTP) and guaranteed losses.
Related products

Tanks and radiators

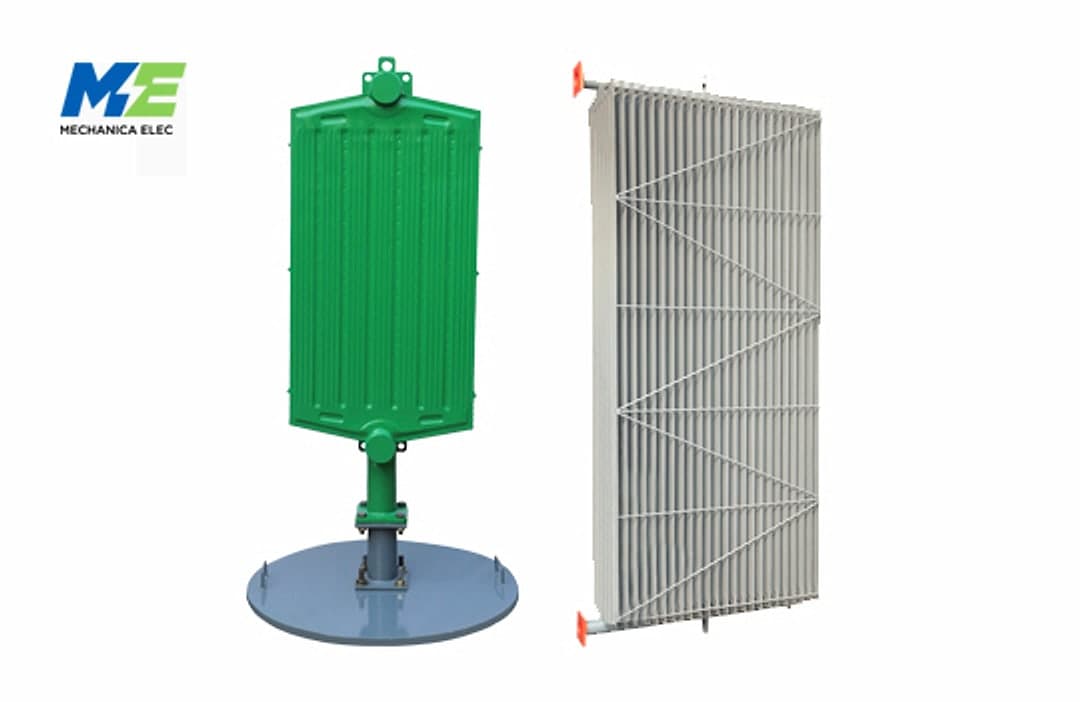

Pressed-steel radiators
Radiators type-tested at ERDA, approved for transformers up to the 220 kV class.
300 mm and 520 mm wide; centres up to 3,500 mm
View data sheet
Tanks and radiators

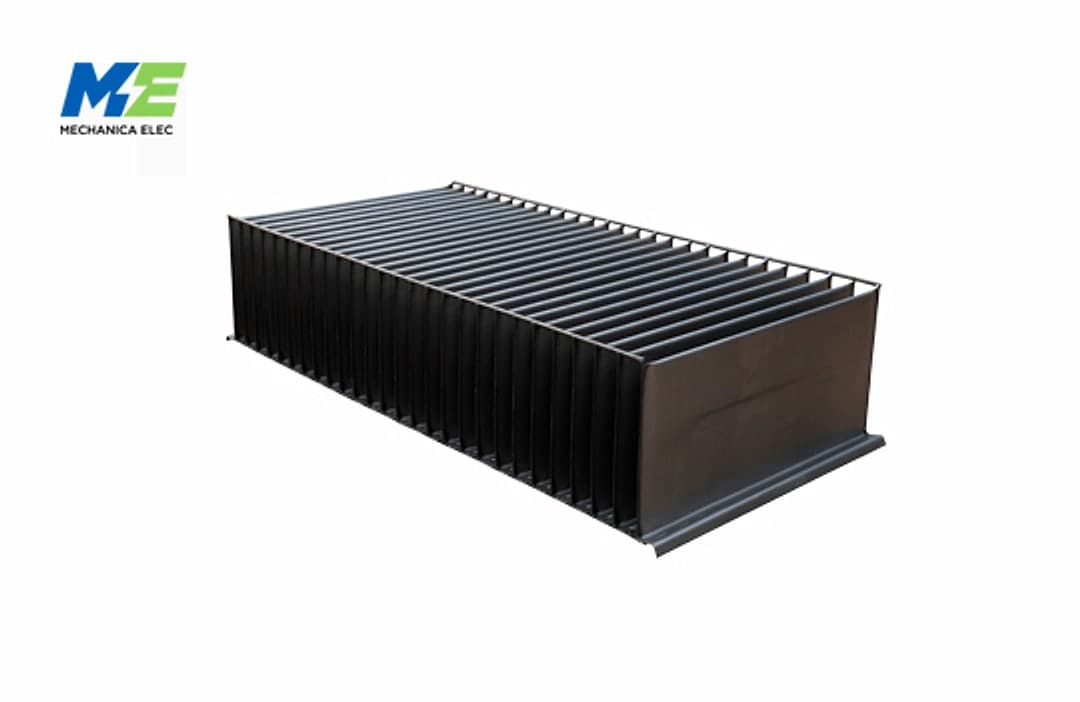

Corrugated fin walls
