Quality & testing
Tested before it leaves. Type tested where it counts.
Certified management systems, BIS-marked distribution transformers, and designs type-tested up to 20 MVA, 33/11 kV.

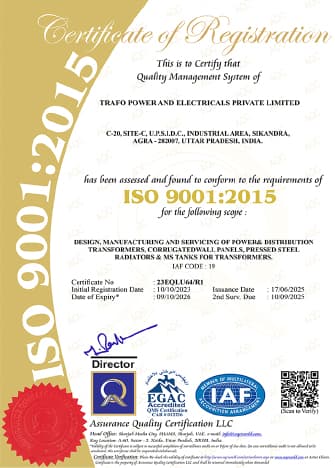

ISO 9001:2015
Quality management

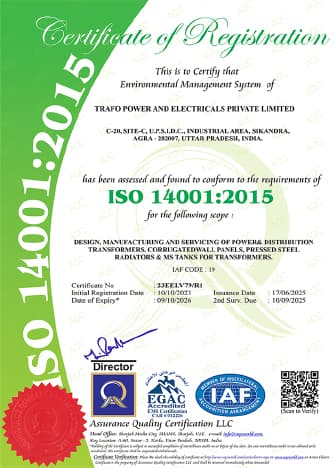

ISO 14001:2015
Environmental management

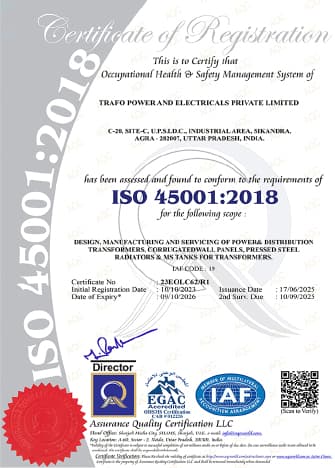

ISO 45001:2018
Occupational health & safety
BIS certification
Transformers BIS-marked conforming to IS 1180 (Part 1): 2014
Bureau of Indian Standards
Trafo Power & Electricals Pvt. Ltd. has been granted BIS certification. Transformers are BIS-marked conforming to IS 1180 (Part 1): 2014.
Type testing
Independent type tests
Designs up to 20 MVA, 33/11 kV are type tested for temperature rise, lightning impulse and short-circuit withstand at independent national laboratories (CPRI and ERDA). Type-test reports are available on request. Pressed-steel radiators are also type tested at ERDA.
CPRI
Central Power Research Institute, Bhopal
ERDA
Electrical Research & Development Association, Vadodara
Routine testing
Tests offered on every order
- Insulation resistance
- Winding resistance
- Voltage ratio & vector group
- Phase relationship
- No-load loss & current
- Load loss
- Induced over-voltage withstand
- Applied (power-frequency) withstand voltage
- Oil leakage / vacuum
- Oil BDV and density
Type tests and special tests can be carried out on customer request.
In-house test equipment
- Transformer testing panel
- Yokogawa power analyser
- Tan delta test equipment
- Transformer oil tester
- Transformer oil filter machine
- DVDF test set
Need test reports or certificates?
Ask for type-test reports, certificates and guaranteed technical particulars for your tender.
